GTX295显卡Mac完美驱动了现在放出驱动文件


Geforce GTX295是双核心显卡，显存也是分两份，和论坛上一般的范例都是单核心显卡不一样，所以无从借鉴，问题关键是要在显卡的两个物理位置各驱动一次，经网上搜索资料，终于找到了EFI驱动GTX295的方法，现在放出驱动文件，我亲自实践可行，QE/CI和分辨率全部开启。
希望对各位网友有用。


使用方法：先解压，用Kexthelper安装Kext文件（根据说明这个Kext实际上是GTX285的驱动，GTX295本身就是两组GTX285硬件组合起来），然后根据需要选择自己需要的Plist文件，双核心的用DualPCB,单核的用SinglePCB（295有单核心的我还没听说），我用的是DualPCB，根据实际的硬件位置用文本编辑它（注意是有两个位置的）。然后用GFXutil指令把.Plist文件生成.hex,（指令文件在压缩包里面）具体操作参考威廉第三的教程在用文本查看.hex文件，复制里面的代码，写在com.apple.Boot.plist的 <key>device-properties</key>下面<string>......</string> ,重起，OK


GeForce GTX 295 EFI-String.zip (35.67 KB, 下载次数: 6)

完美显卡

回复打赏举报

相关帖子

黑苹果OpenCore完美升级教程

admin最后由admin回复于 22/7/31

0 / 3.7k

AMD R9/R7系列黑苹果仿冒显卡驱动教程

admin最后由1126443023回复于 21/7/11

1 / 8.4k

大神修改版显卡驱动补丁Whatevergreen让您的显卡显示白果显卡效果

admin最后由admin回复于 20/3/21

0 / 1.7k

黑苹果intel HD 3000显卡驱动 For Mac

MemacX最后由minibox2000回复于 22/4/2

2 / 3.2k

Intel HD Graphics 510 显卡驱动 For Mac OSX

MemacX最后由cfy754回复于 21/8/23

7 / 5.5k

ThinkPad T420 hd3000显卡安装macOS Mojave 10.14驱动分享

admin最后由3446197104回复于 23/2/19

11 / 5.6k

安装Hacintosh黑苹果系统显卡支持列表（目前主流黑苹果主机）

admin最后由admin回复于 19/11/26

0 / 5.8k

acer e5 572g 98%完美黑苹果Os x Yosemite10.10.5

wxmsqull最后由wxmsqull回复于 18/6/10

1 / 5.8k

解决黑苹果Intel显卡花屏补丁文件IntelGraphicsFixup.kext v1.2.4

liu1989最后由liu1989回复于 18/2/24

1 / 6.9k

office for mac完美破解版-序列号

麦子熟了最后由麦子熟了回复于 17/11/15

0 / 2.2k

AutoCAD 2016 For Mac 简体中文完美汉化激活版 Mac版

admin最后由hjc19881001回复于 21/7/7

38 / 22.0k

IntelHD 620_630显卡驱动 For OS X

admin最后由剃刀岭首富回复于 21/8/26

78 / 36.7k

黑苹果华硕B85 Pro GAME 完美四叶草引导

nmcfsong最后由nmcfsong回复于 17/1/5

0 / 6.8k

英伟达NV显卡WebDriver-367.10.10.05b01 支持10.12 16A320

liu1989最后由liu1989回复于 16/12/21

0 / 1.9k

英伟达NV驱动支持10.7 适用于GT系列大部分老显卡

liu1989最后由BJY_82647631bjy回复于 23/5/17

4 / 2.5k

1 回复

排序

admin

13/2/17 11:23:28

加了以下dsdt，因为显卡是双芯片的，所以，我加了两种dsdt，但是去除了efi驱动，都不能驱动，可以进入系统，显示器信号中断，郁闷的要死！再就是加入dsdt后，我的pci设备显示出来n个gtx295卡，更是让我费解啊！希望懂的人帮我看看，提点一二，让我早日完美！

如下：我加入的dsdt显卡信息（双芯片）

         Device (NPE3)
         {
            Method (_PRW, 0, NotSerialized)
            {
                  Return (GPRW (0x09, 0x04))
            }

            Name (_ADR, 0x00030000)
            Device (GFX0)
            {
                  Name (_ADR, Zero)
                  Name (_SUN, One)
                  Method (_DSM, 4, NotSerialized)
                  {
                     Store (Package (0x16)
                        {
                              "@0,compatible",
                              Buffer (0x0B)
                              {
                                 "NVDA,NVMac"
                              },

                              "@0,device_type",
                              Buffer (0x08)
                              {
                                 "display"
                              },

                              "@0,name",
                              Buffer (0x0F)
                              {
                                 "NVDA,Display-A"
                              },

                              "@1,compatible",
                              Buffer (0x0B)
                              {
                                 "NVDA,NVMac"
                              },

                              "@1,device_type",
                              Buffer (0x08)
                              {
                                 "display"
                              },

                              "@1,name",
                              Buffer (0x0F)
                              {
                                 "NVDA,Display-B"
                              },

                              "NVCAP",
                              Buffer (0x18)
                              {
                                 /* 0000 */ 0x04, 0x00, 0x00, 0x00, 0x00, 0x00, 0x0F, 0x00,
                                 /* 0008 */ 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x07,
                                 /* 0010 */ 0x00, 0x00, 0x00, 0x00
                              },

                              "VRAM,totalsize",
                              Buffer (0x04)
                              {
                                 0x00, 0x00, 0x00, 0x38
                              },

                              "device_type",
                              Buffer (0x0C)
                              {
                                 "NVDA,Parent"
                              },

                              "model",
                              Buffer (0x17)
                              {
                                 "NVIDIA GeForce GTX 295"
                              },

                              "rom-revision",
                              Buffer (0x05)
                              {
                                 "3434"
                              }
                        }, Local0)
                     DTGP (Arg0, Arg1, Arg2, Arg3, RefOf (Local0))
                     Return (Local0)
                  }
            }

            Device (GFX1)
            {
                  Name (_ADR, Zero)
                  Name (_SUN, One)
                  Method (_DSM, 4, NotSerialized)
                  {
                     Store (Package (0x16)
                        {
                              "@0,compatible",
                              Buffer (0x0B)
                              {
                                 "NVDA,NVMac"
                              },

                              "@0,device_type",
                              Buffer (0x08)
                              {
                                 "display"
                              },

                              "@0,name",
                              Buffer (0x0F)
                              {
                                 "NVDA,Display-A"
                              },

                              "@1,compatible",
                              Buffer (0x0B)
                              {
                                 "NVDA,NVMac"
                              },

                              "@1,device_type",
                              Buffer (0x08)
                              {
                                 "display"
                              },

                              "@1,name",
                              Buffer (0x0F)
                              {
                                 "NVDA,Display-B"
                              },

                              "NVCAP",
                              Buffer (0x18)
                              {
                                 /* 0000 */ 0x04, 0x00, 0x00, 0x00, 0x00, 0x00, 0x01, 0x00,
                                 /* 0008 */ 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x07,
                                 /* 0010 */ 0x00, 0x00, 0x00, 0x00
                              },

                              "VRAM,totalsize",
                              Buffer (0x04)
                              {
                                 0x00, 0x00, 0x00, 0x38
                              },

                              "device_type",
                              Buffer (0x0C)
                              {
                                 "NVDA,Parent"
                              },

                              "model",
                              Buffer (0x17)
                              {
                                 "NVIDIA GeForce GTX 295"
                              },

                              "rom-revision",
                              Buffer (0x05)
                              {
                                 "3434"
                              }
                        }, Local0)
                     DTGP (Arg0, Arg1, Arg2, Arg3, RefOf (Local0))
                     Return (Local0)
                  }
            }
         }

这是我加入的dsdt显卡信息（单芯片）

         Device (NPE3)
         {
            Method (_PRW, 0, NotSerialized)
            {
                  Return (GPRW (0x09, 0x04))
            }

            Name (_ADR, 0x00030000)
            Device (GFX0)
            {
                  Name (_ADR, Zero)
                  Name (_SUN, One)
                  Method (_DSM, 4, NotSerialized)
                  {
                     Store (Package (0x16)
                        {
                              "@0,compatible",
                              Buffer (0x0B)
                              {
                                 "NVDA,NVMac"
                              },

                              "@0,device_type",
                              Buffer (0x08)
                              {
                                 "display"
                              },

                              "@0,name",
                              Buffer (0x0F)
                              {
                                 "NVDA,Display-A"
                              },

                              "@1,compatible",
                              Buffer (0x0B)
                              {
                                 "NVDA,NVMac"
                              },

                              "@1,device_type",
                              Buffer (0x08)
                              {
                                 "display"
                              },

                              "@1,name",
                              Buffer (0x0F)
                              {
                                 "NVDA,Display-B"
                              },

                              "NVCAP",
                              Buffer (0x18)
                              {
                                 /* 0000 */ 0x04, 0x00, 0x00, 0x00, 0x00, 0x00, 0x0F, 0x00,
                                 /* 0008 */ 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x07,
                                 /* 0010 */ 0x00, 0x00, 0x00, 0x00
                              },

                              "VRAM,totalsize",
                              Buffer (0x04)
                              {
                                 0x00, 0x00, 0x00, 0x38
                              },

                              "device_type",
                              Buffer (0x0C)
                              {
                                 "NVDA,Parent"
                              },

                              "model",
                              Buffer (0x17)
                              {
                                 "NVIDIA GeForce GTX 295"
                              },

                              "rom-revision",
                              Buffer (0x05)
                              {
                                 "3434"
                              }
                        }, Local0)
                     DTGP (Arg0, Arg1, Arg2, Arg3, RefOf (Local0))
                     Return (Local0)
                  }
            }
         }

这里是我加入的efi驱动信息：

      <key>device-properties</key>
      <string>b80700000100000002000000d60300001500000002010c00d041030a000000000101060000030101060000000101060000020101060000007fff04003a000000400032002c0068007700730065006e0073006f0072002d0070006100720061006d0073002d00760065007200730069006f006e000000080000000000000222000000400032002c006400650076006900630065005f0074007900700065000000120000004e5644412c6770752d64696f64650e0000004e00560050004d00000020000000010000000000000000000000000000000000000000000000000000001e00000072006f006d002d007200650076006900730069006f006e0000001200000036322e30302e36432e30302e3034100000004e0056004300410050000000180000000400000000000f0000000000000000070000000022000000400032002c002300730069007a0065002d00630065006c006c0073000000080000000000000022000000400030002c006400650076006900630065005f00740079007000650000000b000000646973706c6179100000006d006f00640065006c0000001a0000004e5649444941204765466f726365204754582032393514000000400030002c006e0061006d0065000000120000004e5644412c446973706c61792d4120000000400032002c0063006f006d00700061007400690062006c0065000000160000004e5644412c73656e736f722d706172656e7414000000400031002c006e0061006d0065000000120000004e5644412c446973706c61792d4212000000400032002c00720065006700000008000000000000021c0000006400650076006900630065005f0074007900700065000000100000004e5644412c4765466f72636520000000400031002c0063006f006d00700061007400690062006c00650000000e0000004e5644412c4e564d616326000000400032002c0023006100640072006500730073002d00630065006c006c007300000008000000000000010e0000006e0061006d00650000000f0000004e5644412c506172656e7422000000400031002c006400650076006900630065005f00740079007000650000000b000000646973706c617920000000400030002c0063006f006d00700061007400690062006c00650000000e0000004e5644412c4e564d6163220000005600520041004d002c0074006f00740061006c00730069007a0065000000080000000000003836000000400032002c00680077006300740072006c002d0070006100720061006d0073002d00760065007200730069006f006e000000080000000000000214000000400032002c006e0061006d00650000001100000073656e736f722d706172656e74d60300001500000002010c00d041030a000000000101060000030101060000000101060000000101060000007fff04003a000000400032002c0068007700730065006e0073006f0072002d0070006100720061006d0073002d00760065007200730069006f006e000000080000000000000222000000400032002c006400650076006900630065005f0074007900700065000000120000004e5644412c6770752d64696f64650e0000004e00560050004d00000020000000010000000000000000000000000000000000000000000000000000001e00000072006f006d002d007200650076006900730069006f006e0000001200000036322e30302e36432e30302e3035100000004e005600430041005000000018000000040000000000010000000000000000070000000022000000400032002c002300730069007a0065002d00630065006c006c0073000000080000000000000022000000400030002c006400650076006900630065005f00740079007000650000000b000000646973706c6179100000006d006f00640065006c0000001a0000004e5649444941204765466f726365204754582032393514000000400030002c006e0061006d0065000000120000004e5644412c446973706c61792d4120000000400032002c0063006f006d00700061007400690062006c0065000000160000004e5644412c73656e736f722d706172656e7414000000400031002c006e0061006d0065000000120000004e5644412c446973706c61792d4212000000400032002c00720065006700000008000000000000021c0000006400650076006900630065005f0074007900700065000000100000004e5644412c4765466f72636520000000400031002c0063006f006d00700061007400690062006c00650000000e0000004e5644412c4e564d616326000000400032002c0023006100640072006500730073002d00630065006c006c007300000008000000000000010e0000006e0061006d00650000000f0000004e5644412c506172656e7422000000400031002c006400650076006900630065005f00740079007000650000000b000000646973706c617920000000400030002c0063006f006d00700061007400690062006c00650000000e0000004e5644412c4e564d6163220000005600520041004d002c0074006f00740061006c00730069007a0065000000080000000000003836000000400032002c00680077006300740072006c002d0070006100720061006d0073002d00760065007200730069006f006e000000080000000000000214000000400032002c006e0061006d00650000001100000073656e736f722d706172656e74</string>

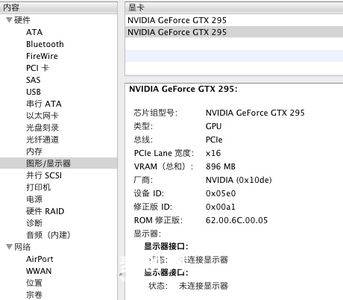

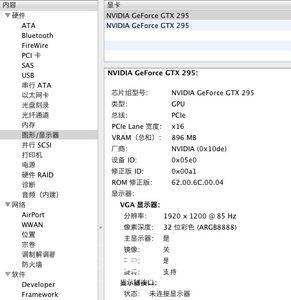

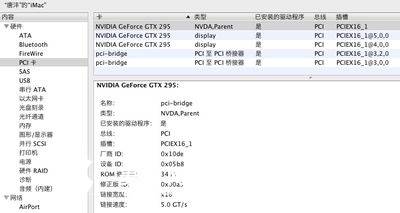

这里是我加入了dsdt后，pci设备显示出来的结果：

回复支持反对打赏举报
